Arctic Freezer 36-S A-RGB Review: Compact Tower Design, Four Heat Pipes and 3,000 RPM Fan

Arctic’s Freezer 36-S A-RGB is a compact single-fan tower cooler built around four direct-touch copper heat pipes and a 120mm fan that can reach 3,000 RPM. Its dimensions and broad socket support make it a candidate for builds where a large cooler may be awkward to fit. The available review material, however, describes the hardware and installation package without reporting thermal, noise or comparative test results. Buyers can assess the design here, but its cooling performance remains unverified by the information provided.

Compact dimensions, conventional tower layout

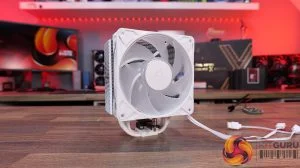

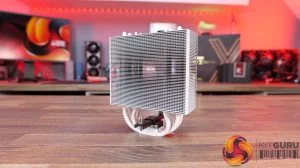

With the fan attached, the cooler measures 126 x 88 x 156 mm and weighs 685 g. The 156mm height is the key case compatibility figure to check before buying; the overall width and depth also matter when planning around nearby components. Arctic describes the design as offering unlimited RAM clearance, though the article doesn't detail how that clearance was assessed or how the fan sits relative to memory modules in different configurations.

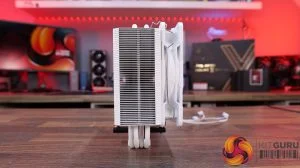

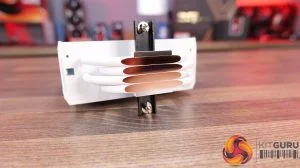

The heatsink uses 54 aluminium fins, each 0.4 mm thick, with four 6 mm copper heat pipes carrying heat from the processor into the fin stack. The pipes contact the CPU’s integrated heat spreader directly. This arrangement avoids an intervening base plate at the contact surface, while the aluminium fins provide the area that the fan pushes air through. The article lists those construction details but gives no measured temperatures or processor power limits, so they don't establish how the cooler will perform under a particular workload.

One fan, with a wide speed range

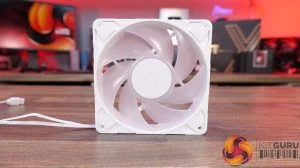

Arctic supplies a 25 mm-thick P12 Pro PST fan. Its PWM speed range runs from 600 to 3,000 RPM, with a listed maximum airflow of 77 CFM and maximum static pressure of 6.90 mmH₂O. Those are manufacturer specifications, not results from a test of the cooler as a complete unit. Fan speed can be controlled through a four-pin PWM connector, and the listed 0 dB mode applies below 5% PWM.

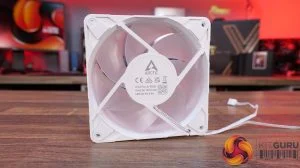

The fan uses a fluid dynamic bearing and is rated at 0.33 A and 12 V DC. Its cable is 200 mm long. PST is part of the fan’s name in the supplied specifications, but the article doesn't explain how that feature affects cable management or fan connections in a finished system. In practice, the stated speed range gives motherboard fan controls room to adjust operation; how that balance sounds and cools will depend on the processor, case airflow and chosen fan curve.

Lighting and finish options

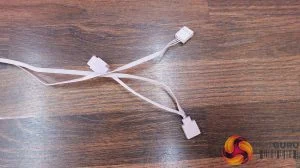

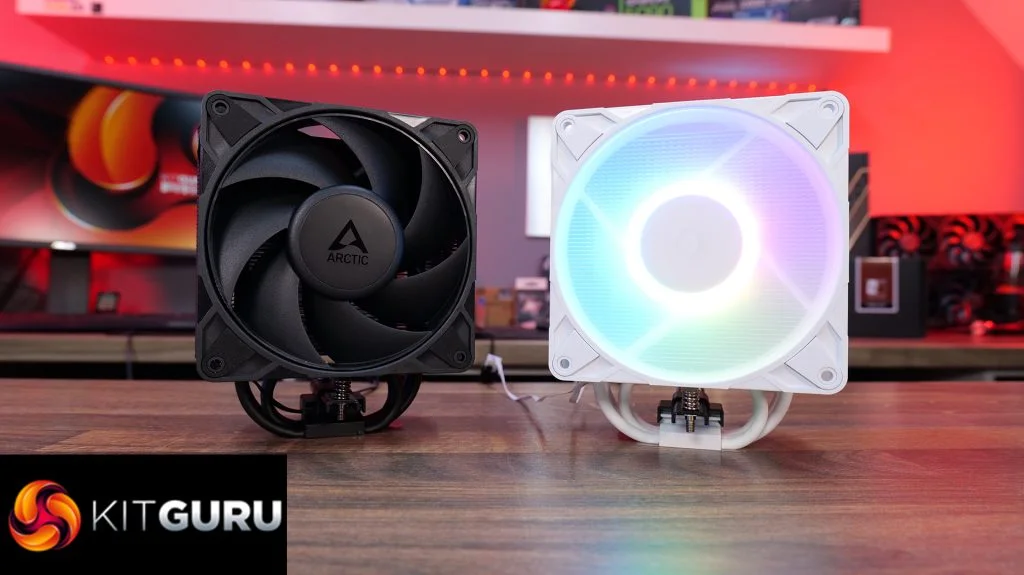

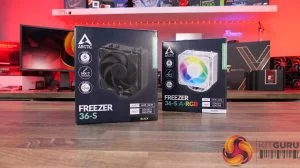

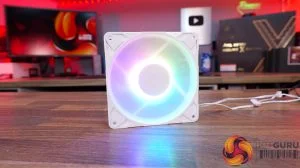

The Freezer 36-S comes in versions with or without lighting, and in black or white. Arctic equips both versions with the P12 Pro PST fan; on the A-RGB model, the fan blades are illuminated. The lighting uses 12 addressable LEDs and connects through a standard three-pin 5 V A-RGB header, so control depends on having a compatible motherboard connection or lighting setup. The lighting cable is 200 mm long, and the listed lighting rating is 0.4 A at 5 V DC.

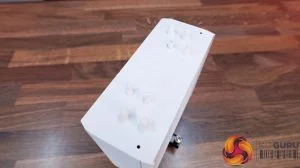

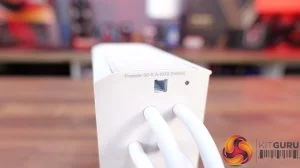

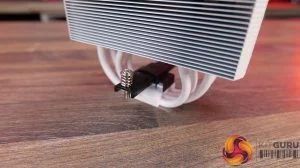

The heatsink, heat pipes and exterior are covered with a matte black or white coating to match the selected colour scheme. The top face leaves the heat-pipe ends visible and places an Arctic logo in the centre of the upper fin. There is one detail for white-build shoppers to consider: the socket clamp bar has a black coating, which stands out against the otherwise white finish.

Socket support and installation

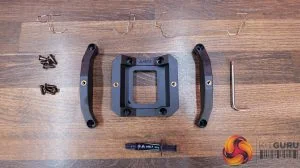

Arctic lists compatibility with Intel LGA1851 and LGA1700, as well as AMD AM5 and AM4. The package includes mounting hardware for those platforms, a small tube of thermal paste and a contact frame for Intel. That gives buyers the key installation parts in the box, though the article doesn't compare the mounting process across sockets or provide an installation time.

There is no printed installation guide. Instead, users need to scan a QR code to open the manual online. That should be manageable for a builder with a phone nearby, but it does mean the instructions aren't immediately available on paper during assembly. The cooler is rated for ambient temperatures from 0–40°C and carries a six-year warranty, according to the listed specifications.

The Freezer 36-S A-RGB’s clearest appeal is its measured footprint, four-pipe heatsink, wide fan speed range and standard motherboard lighting connection. Its listed socket coverage spans current Intel and AMD desktop platforms, while the black and white finishes offer straightforward build matching. The details available here don't establish whether it can handle a specific high-power processor quietly or outperform another tower cooler; prospective buyers should look for temperature and noise testing before judging it on those points.
